Outdoor Panels
We offer a variety of panels from 30A to 800A which are all built to NEMA 3R standard allowing them to be used outdoors in all weather conditions.
100A Outdoor Panel - DIS-100C
100A-120/208V Cam-Lok Input (Single Phase)
Main Breaker: None
2 x 30A-125/250V L14-30 Twistlock Outputs
1 x 50A-125/250V CS6369 Twistlock Output
125A Outdoor Panel - DIS-125A
125A-120/208V Cam-Lok Input (Single Phase)
Main Breaker: 125A
2 x 50A-125/250V CS6369 Twistlock Outputs
3 x 30A-125/250V L14-30 Twistlock Outputs
200A Outdoor Panel - DIS-4X50
200A-120/208V Cam-Lok Input with Thru
Main Breaker: None
4 x 50A-125/250V CS6369 Outputs
200A Outdoor Panel - DIS-6X35
200A-120/208V Cam-Lok Input
Main Breaker: None
3 x 50A-125/250V CS6369 Outputs
3 x 30A-125/250V L14-30 Outputs
200A Outdoor Panel - DIS-6X50
200A-120/208V Cam-Lok Input
Main Breaker: None
6 x 50A-125/250V CS6369 Outputs

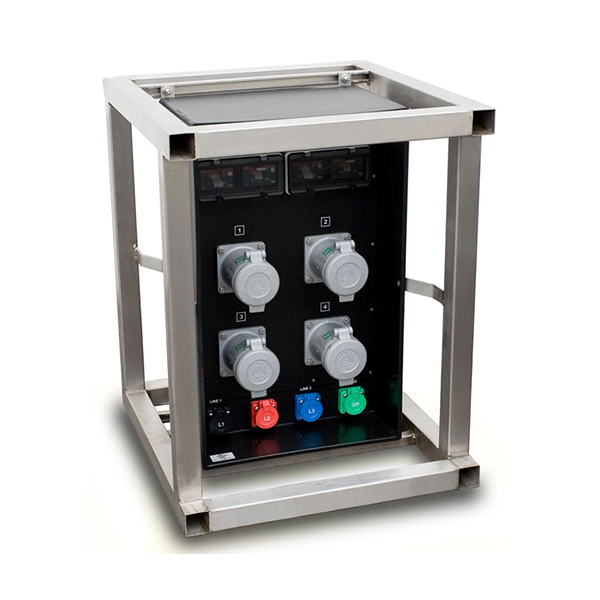

225A Outdoor Panel - DIS-4X60
Panel Designed for Welding Power Supply or 600V Distribution

225A-600V Cam-Lok Input with Thru
Main Breaker: Adjustable 250A
4 x Arktite 60A-600V

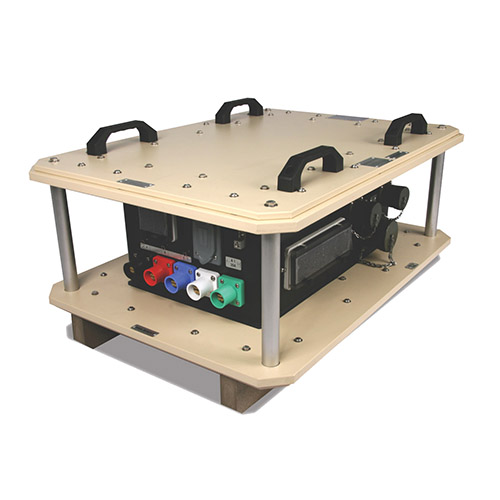

250A Outdoor Panel - DIS-2X10
400A-120/208V Cam-Lok Input
Main Breaker: 250A
2 x 100A-120/208V Pin & Sleeve Output
2 x 50A-125/250V CS6369 Outputs

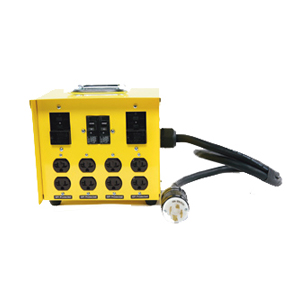

30A Outdoor Panel - DIS-30C
30A-125/250V L14-30 Twistlock Input
Main Breaker: None
4 x 20A-125V U-Ground Outputs
(2 Circuits Only)
30A Outdoor Panel - DIS-30L
30A-125/208V Pin & Sleeve Input
Main Breaker: None
9 x 20A-125V U-Ground Outputs
400A Outdoor Panel - DIS-10X3
400A-120/208V Cam-Lok Input with Thru
Main Breaker: None
10 x 30A-125/250V L14-30 Outputs
400A Outdoor Panel - DIS-10X5
400A-120/208V Cam-Lok Input
Main Breaker: None
10 x 50A-125/250V CS6369 Outputs
400A Outdoor Panel - DIS-10XC
400A-120/208V Cam-Lok Input
Main Breaker: None
6 x 50A-125/250V CS6369 Outputs
4 x 30A-125/250V L14-30 Outputs

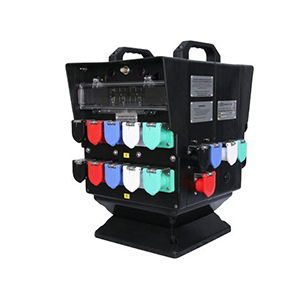

400A Outdoor Panel - DIS-4X10
400A-120/208V Cam-Lok Input
Main Breaker: None
4 x 100A-120/208V Cam-Lok Outputs

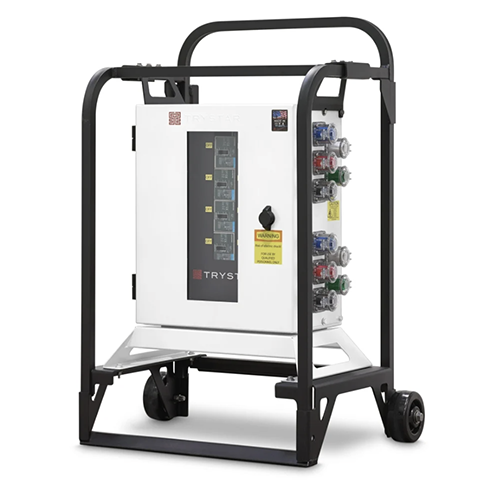

400A Outdoor Panel - DIS-4X12
400A-347/600V Cam-Lok Input
4 x 125A-347/600V Cam-Lok Outputs

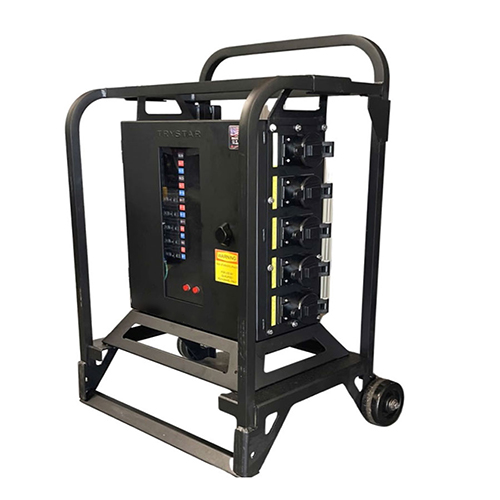

400A Outdoor Panel - DIS-L21
400A-120/208V Cam-Lok Input with Thru
Main Breaker: 200A
10 x 30A-120/208V L21-30 Outputs
400A Outdoor Panel - DIS-L21B
400A-120/208V Cam-Lok Input with Thru
Main Breaker: 200A
6 x 30A-120/208V L21-30 Outputs
4 x 50A-125/250V CS6369 Outputs
50A Outdoor Panel - DIS-2X30
50A-125/250V CS6365 Twistlock Input
Main Breaker: None
2 x 30A-125/250V L14-30 Twistlock Outputs
50A Outdoor Panel - DIS-50C
50A-125/250V CS6375 Twistlock Input
50A-125/250V CS6469 Twistlock Thru
Main Breaker: None
6 x 20A-125V U-Ground Outputs
1 x 30A-125/250V L14-30 Twistlock Output
